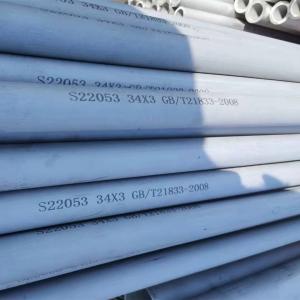

Seamless Stainless Steel Pipe Tube Grade 304 316L 310S 321 2205 2507 904L Stainless Steel Pipe
Stainless Steel Seamless Pipe is made from round bar. There are many processes to make round bar to seamless pipe. It is different from welded pipe, seamless pipe has no welding seam across the whole section. Hence, it can bear higher pressure than welded pipe.
It is widely used in the food industry, home appliances and consumer electronics, medical equipment, architectural decoration, hardware tools, automotive industry, petrochemical, water treatment plants, aerospace, etc.
Tubinox is able to make stainless steel seamless pipe as per different standards/specifications, like ASTM A312 / ASME SA312, ASTM A213 / ASME SA213, ASTM A269, ASTM A632 / ASME SA632, JIS G3459, JIS G3448, JIS G3463, EN10216-5, EN ISO1127, DIN 17456, DIN 17458, GOST 9941, etc. We can also make as per custom specification.
| Name | Stainless Steel Seamless Pipes |
| Standard | ASTM, GB, JIS, DIN, EN, AISI |
| Material Grade | TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S |
| TP410 TP410S TP403 |
| S31803/S32205 S32750 S32760 |
| Outer Diameter | Seamless Pipe: 4mm-812.80mm |
| Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm), |
| Thickness | Seamless Pipe: 0.5mm - 60mm |
| Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm) |
| Length | 5.8-6.1 m or as customers' request |
| Tolerance | Acording to the Standard. |
| Surface | 180G, 320G, 400G Satin / Hairline |
| 400G, 500G, 600G or 800G Mirror finish |
| Test | UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers |
| Certificate | ISO9001-2008,ASME, PED |
| Delivery Time | 30-60Days, Depends on quantity |
stainless steel pipe sizes
| seamless stainless steel pipe |
- Size: 6NB - 1200NB
- OD: 1/8" - 12" NPS
- Thickness : 0.6 - 12.7 mm
- Length: Single, Double Random & Cut Length
|
| welded stainless steel pipe |
- Size: 1/8” - 36” NB, 1/4” - 36” OD
- OD: 6.35 - 114.3 mm
- Thickness : 0.8 - 12.7 mm
- Length: up to 26 Meters
|
Grade Chemical Composition of our grade
| Grade | Chemical Composition (%) |
| | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | N |
| TP304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0-20.0 | 8.0-11.0 | - | - | - |
| TP304L | ≤0.035 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0-20.0 | 8.0-13.0 | - | - | - |
| TP304H | 0.04-0.10 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0-20.0 | 8.0-11.0 | - | - | - |
| TP309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 22.0-24.0 | 12.0-15.0 | ≤0.75 | - | - |
| TP310S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 24.0-26.0 | 19.0-22.0 | ≤0.75 | - | - |
| TP316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | - | - |
| TP316L | ≤0.035 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | - | - |
| TP316Ti | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | 5x(C+N)-0.70 | ≤0.10 |
| TP317L | ≤0.035 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 18.0-20.0 | 11.0-15.0 | 3.00-4.00 | - | - |
| TP321 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 17.0-19.0 | 9.0-12.0 | - | 5xC-0.70 | ≤0.10 |
| TP321H | 0.04-0.10 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 17.0-19.0 | 9.0-12.0 | - | 4xC-0.60 | - |
| TP347 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 17.0-19.0 | 9.0-13.0 | - | - | - |
| S31803 | ≤0.030 | ≤2.00 | ≤0.030 | ≤0.020 | ≤1.00 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | - | 0.08-0.20 |
| S32205 | ≤0.030 | ≤2.00 | ≤0.030 | ≤0.020 | ≤1.00 | 22.0-23.0 | 4.5-6.5 | 3.0-3.5 | - | 0.14-0.20 |
Our Factory Show
Shipping Informations:
-
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
-
2. Goods delivered by 20" , 40" FCL/LCL by quantity or customer's request.
-
3. Customers specifying freight forwarders or negotiable shipping methods!
-
4. Delivery Time: 10-30days after conformed or according to quantity.
FAQ
| Q | What is our product range? |
| A | Based on our Stainless Steel seamless pipe factory, We supply the ONE-STOP service fittings,flanges, valves etc |
| Q | What is our advantages? |
| A | 1.SAILING has more than 10 years experience in this industry. 2.For each order, strict QC will be carried by the QC department before Shipping 3.Certificated by ISO,PED,TUV 4.Third party inspection such as TUV,BVmLloyd's,SGS. 5.Competitive price with reliable quality |
